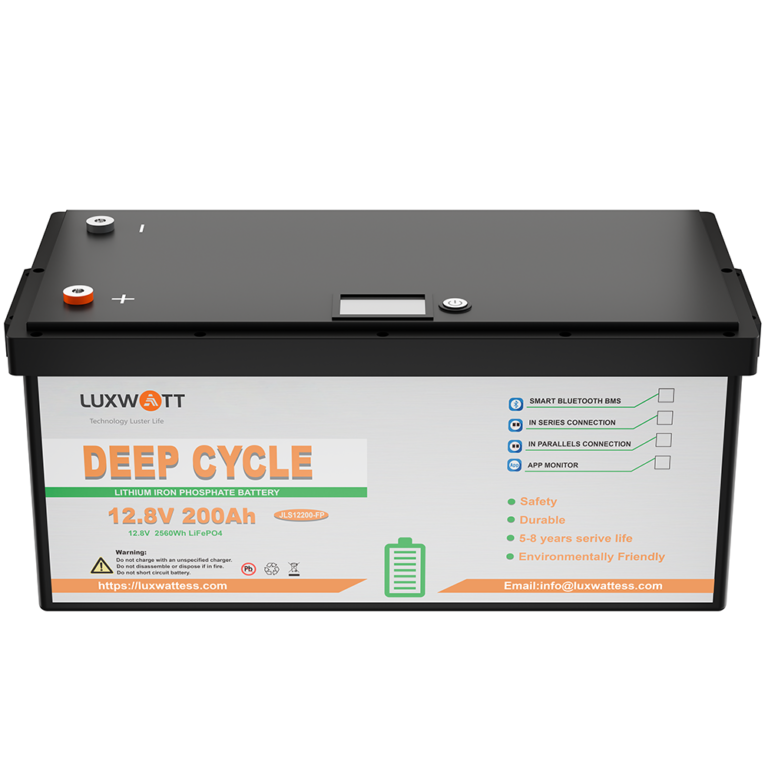

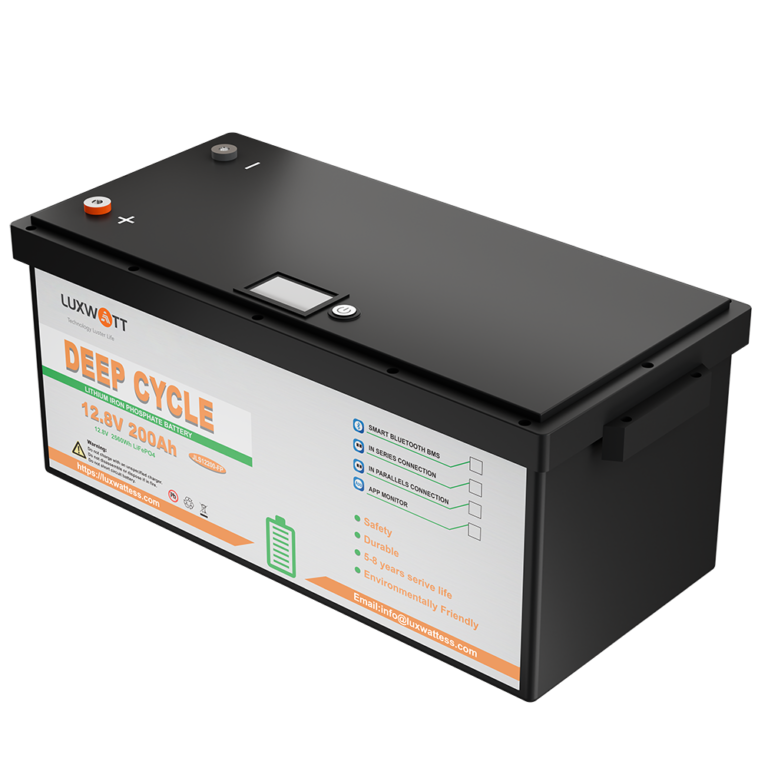

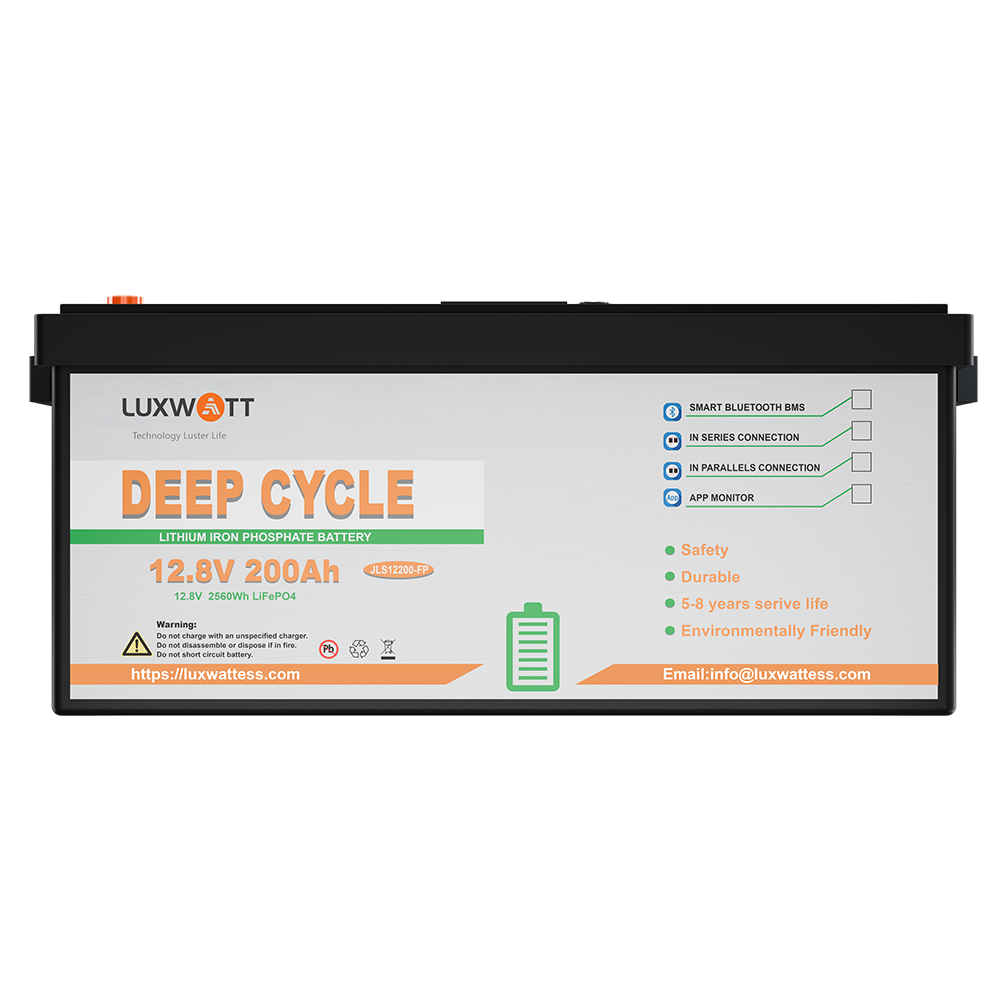

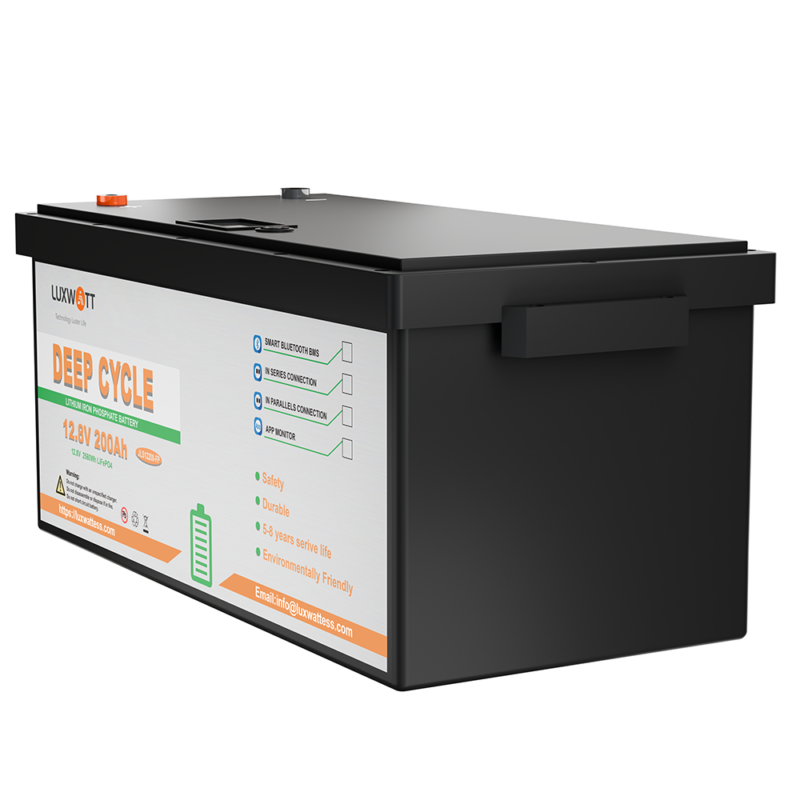

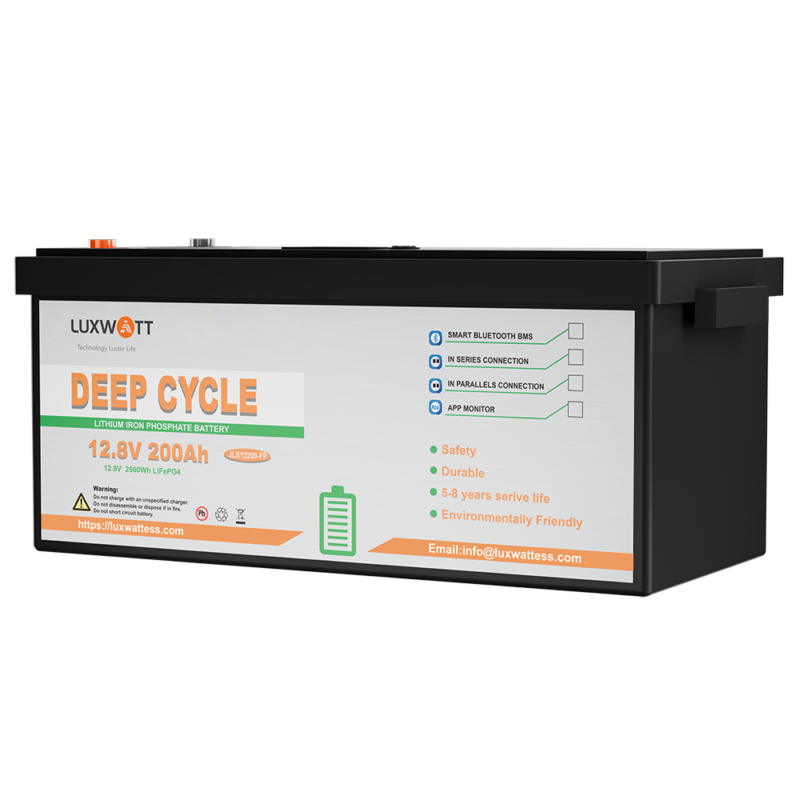

2.56kWh 12.8V 200Ah LUX-12200FP lithium battery

LiFePO4 Battery

2.56kWh 12.8V 200Ah LUX-12200FP lithium battery

Ref: 2.56kWh 12.8V 200Ah LUX-12200FP lithium battery

৳:42,960.00 ৳:39,910.00 SAVE ৳:-3,050.00

Quantity:

Bulk Pricing

Wholesale: ৳:36,960.00

Quick Overview

1. Convenient communication. Bluetooth function can be added to obtain battery data in the cloud.
2. Visual design. LCD display can be added to check the battery.
3. Waterproof & dustproof. IP65 waterproof and dustproof performance.
4. Flexible & convenient. Multi scenario use（RV, cart, UPS,etc.）, plug and play, can be used in series-parallel.

Description

2.56kWh 12.8V 200Ah LUX-12200FP lithium battery

Description

Parameters
Product Model	LUX-12100FP	LUX-12200FP
Nominal Voltage	12.8V	12.8V
Nominal Capacity @25°C	100AH	200AH
Nominal Energy @25°C	1280WH	2560WH
Battery Cell Type	Prismatic 100Ah	Prismatic 100Ah
Configuration (SP)	4S1P	4S2P
Max.Continous Charge Current @25C	100A	100A
Max, Continous Discharge Current @25C	100A	100A
DC Resistance	≤50mΩ
Full Charged Voltage	14.6V
Discharge Cut-off Voltage	10V
Operate Temperature Range	Charge: 0’C~55°C;	Discharge: -20°℃~60’C;
Dimension (mm)	326171215mm	522240218mm
Weight (kG)	12.5KG	25KG
Terminal Type	Screw terminal
Cover Sealing type	Screw/gel sealing optional
Water proof	IP65
Cycle life	100% DOD Cycles @ 25C, 1C/1C: >2000 times 80% DOD Cycles @ 25’C, 1C/1C: >3000 times 50% DOD Cycles @ 25’C, 1C/1C:>5000 times
LCD Screen Display	Optional (Show voltage V, Power %)
Bluetooth	Optional (Bluetooth with mobile APP)
Series and Parallels Function	Available to make in series and parallels to get 48V
Heating Function	Optional(Heating function for application in cold area)
