G-DDMHE-08K-1PTW

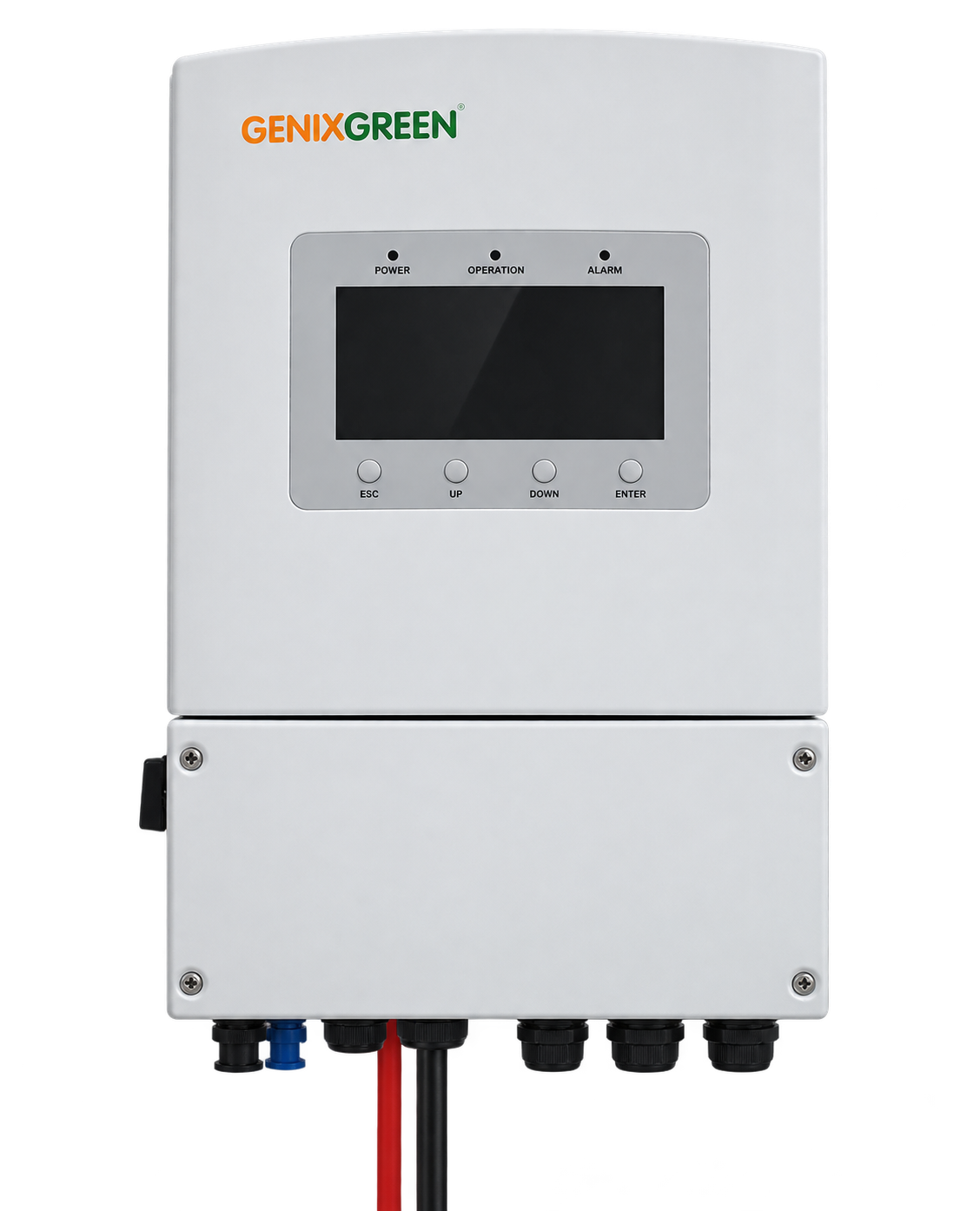

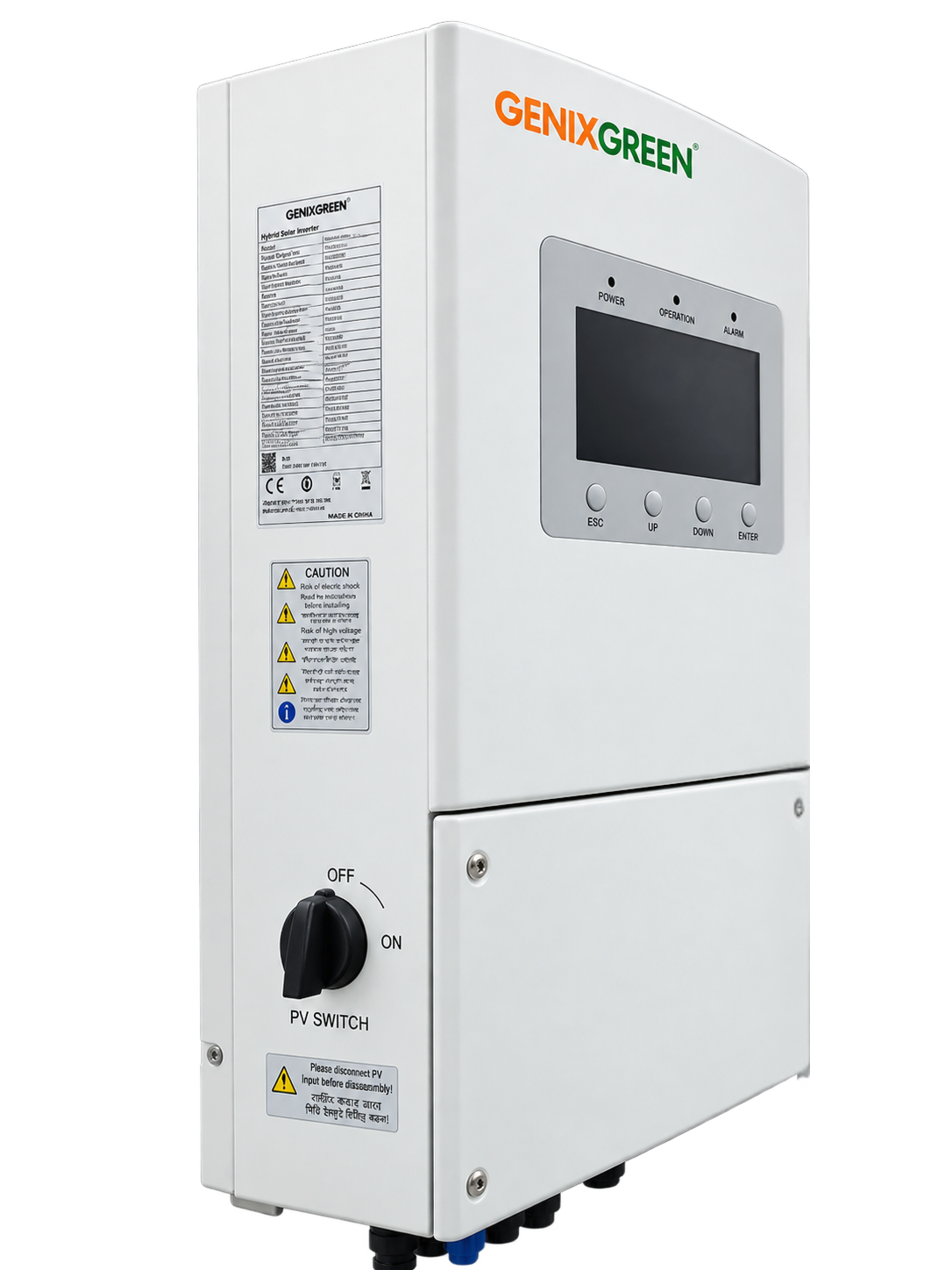

GENIXGREEN 8KW Hybrid Inverter
Model: G-DDMHE-08K-1PTW
Rated Output: 8kW
Type: Single-Phase Low-Voltage Hybrid Energy Storage Inverter
The official GENIXGREEN specification lists 500V maximum PV input, 90–435V MPPT range, 2 × 42A maximum PV input current, 40–60V battery range, 190A maximum charge/discharge current, 220/230V AC output, IP66 protection, and 50/60Hz operation.
Short Description:
GENIXGREEN G-DDMHE-08K-1PTW 8KW Hybrid Inverter is a high-performance single-phase energy storage inverter designed to intelligently manage solar, battery, grid, and backup power for residential and commercial applications.
GENIXGREEN 8KW Hybrid Inverter
Model: G-DDMHE-08K-1PTW
Type: Single-Phase Low-Voltage Energy Storage / Hybrid Inverter
Rated Output Power: 8kW
Product Specification
| Specification | Details |
|---|---|
| Brand | GENIXGREEN |
| Model | G-DDMHE-08K-1PTW |
| Inverter Type | Hybrid / Energy Storage Inverter |
| Phase | Single Phase |
| Rated Output Power | 8,000W |
| Maximum PV Input Voltage | 500V DC |
| MPPT Voltage Range | 90–435V DC |
| Maximum PV Input Current | 2 × 42A |
| Maximum PV Short-Circuit Current | 2 × 48A |
| Battery Type | Lithium-ion / Lead-acid |
| Battery Voltage Range | 40–60V DC |
| Max. Charge Current | 190A |
| Max. Discharge Current | 190A |
| Backup Output Voltage | 220/230V AC |
| Grid Output Voltage | 220/230V AC |
| Frequency | 50/60Hz |
| Max./Rated Backup Output Current | 36.4A / 34.8A |
| Max./Rated Grid Output Current | 36.4A / 34.8A |
| Power Factor Range | -0.8 to +0.8 |
| Ingress Protection | IP66 |
| Installation | Wall-mounted |
| Switching Time | <10ms |
| PV Input Capability | Up to 160% PV input |
| Parallel Operation | Supported |
| AC Coupling | Supported |
Specifications are based on GENIXGREEN's official product page for this model.
Short Description
GENIXGREEN G-DDMHE-08K-1PTW 8KW Hybrid Inverter is a high-performance single-phase low-voltage energy storage inverter designed to intelligently manage solar, battery and grid power, providing reliable backup and efficient energy utilization for residential and commercial applications.
Long Description
The GENIXGREEN G-DDMHE-08K-1PTW 8KW Hybrid Inverter is an advanced single-phase low-voltage energy storage solution designed for modern solar and battery storage systems. With an 8kW rated output and support for 40–60V DC battery systems, it provides flexible energy management for residential and commercial applications.
The inverter supports a maximum PV input voltage of 500V DC, an MPPT range of 90–435V, and up to 2 × 42A PV input current, allowing efficient utilization of solar generation. It also supports up to 190A charging and discharging current for low-voltage battery systems.
With UPS-level switching capability and switching time below 10ms, the system is designed to provide fast transition to backup power. The inverter also supports parallel connection, allowing multiple units to be combined for higher-capacity systems, as well as AC-coupling applications.
GENIXGREEN also highlights intelligent energy-management functions, including VPP and EMS integration, TOU-based charging/discharging management, remote O&M, OTA upgrades, communication-based monitoring and intelligent battery-management functions.
Key Features
- 8kW high-performance hybrid inverter
- Single-phase low-voltage energy storage design
- 500V maximum PV input voltage
- 90–435V MPPT voltage range
- 2 × 42A maximum PV input current
- Supports 40–60V low-voltage batteries
- Up to 190A charge/discharge current
- Lithium-ion and lead-acid battery compatibility
- <10ms UPS-level switching
- Supports up to 160% PV input
- Grid, solar and battery energy management
- Backup power functionality
- AC-coupling support
- Multiple-unit parallel operation
- Intelligent TOU charging/discharging management
- VPP and EMS platform integration
- Remote monitoring and O&M
- OTA remote software upgrades
- Real-time system and battery monitoring
- Built-in multi-level protection functions
- IP66 protection
- Wall-mounted installation
- Designed for residential and commercial energy-storage applications
Official product reference: GENIXGREEN G-DDMHE-08K-1PTW
