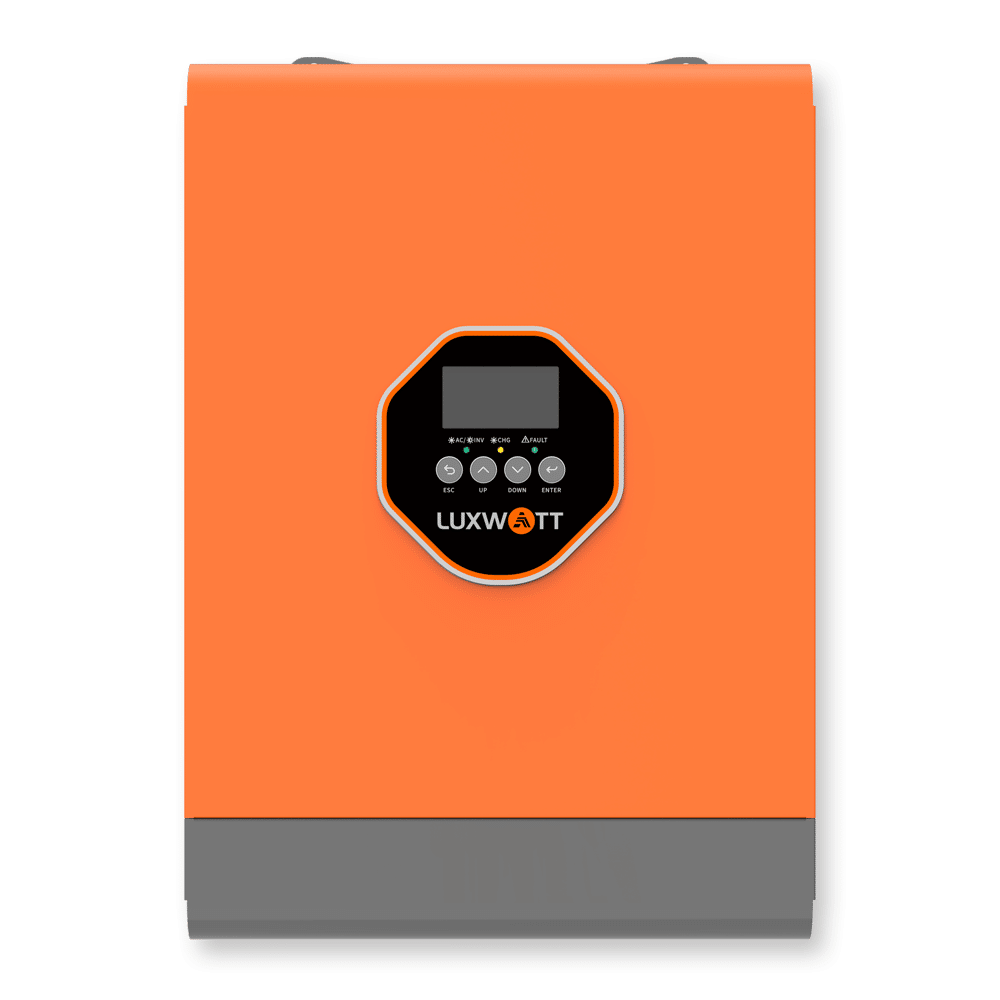

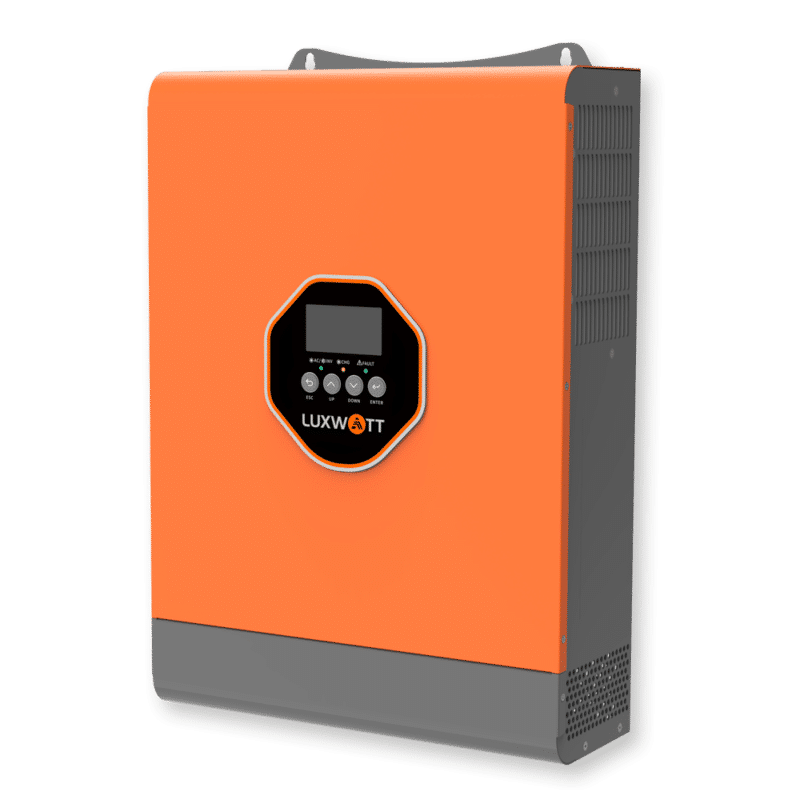

5kw Single Phase Home Hybrid inverter
1. Pure sine wave output inverter;
2. Independently develop PCB boards and cooling systems with stable quality;
3. Flexible installation and high charging efficiency;
4. Intelligent battery charging design to optimize battery life;
5. Parallel expansion is possible, with 6 units working at the same time;
6. Optional wifi function.
5kw Single Phase Home Hybrid inverter
1. Pure sine wave output inverter;
2. Independently develop PCB boards and cooling systems with stable quality;
3. Flexible installation and high charging efficiency;
4. Intelligent battery charging design to optimize battery life;
5. Parallel expansion is possible, with 6 units working at the same time;
6. Optional wifi function.
|
Model |
L-HOMLE-05K |
|
AC INPUT |
|
|
Rated Voltage |
208/220/230/240V a.c.,L+N+PE |
|
Rated Frequency |
50 Hz / 60 Hz |
|
Current (Maximum Continuous) |
40 A a.c. |
|
INVERTER OUTPUT |
|
|
Rated Power |
5kW |
|
Rated Voltage |
208/220/230/240 V a.c., L+N+PE |
|
Power Factor |
1 |
|
Wave Form |
Pure Sine Wave |
|
Switch Time |
<10 ms (Typical) |
|
Inverter Efficiency (Peak) |
>94% |
|
Current (Maximum Continuous) |
22.7 A a.c. |
|
Maximum Output Overcurrent Protection |
102%~ 110% 1min / 110% ~ 130% 10s / 130% ~ 150% 3s / 150% 0.2s |
|
BATTERY |
|
|
Battery Type |
Lithium / Lead-acid |
|
Rated Battery Voltage |
48 V d.c. |
|
Battery Voltage Range |
42~ 60 V d.c. |
|
Max. Charge Current |
80 A d.c. |
|
PV INPUT |
|
|
No. of MPPT Tracker/ Strings |
1/1 |
|
Max. PVArray Power |
6 kW |
|
Max. DC Voltage |
500V d.c. |
|
MPPT Voltage Range |
120~430 V d.c. |
|
Start-up Voltage |
120Vd.c. |
|
MPPT Maximum Charge Current |
80 A d.c. |
|
Max. Input Current |
18 A d.c. |
|
Isc PV (Absolute Maximum) |
22 Ad.c. |
|
PROTECTION & FEATURE |
|
|
Parallel Function |
Yes (up to 6pcs,optional) |
|
Protection Degree |
IP20, Indoor only |
|
Certifications |
CE (IEC62109-1), EN61000 NRS |
|
Other Protection |
Overload, Over temperature, Short circuit |
|
GENERAL PARAMETER |
|
|
Storage Temperature |
-10C~+60°C |
|
Operating Temperature |
-10℃~+50C |
|
Humidity |
5%~ 95% (Non-condensing) |
|
Operating Altitude |
4000 m (>1000 m Derating) |
|
Noise |
<50 dB |
|
Machine Dimensions (W*H*D) |
335*470*125 mm |
|
Machine Weight/ N.W. |
8.6 kg |
|
DISPLAY AND COMMUNICATION |
|
|
Display |
LCD Display (Display Running Mode, Loads / Input / Output etc.) |
|
Interface |
RS485 / CAN / Dry Contact / WiFi (Optional) |
