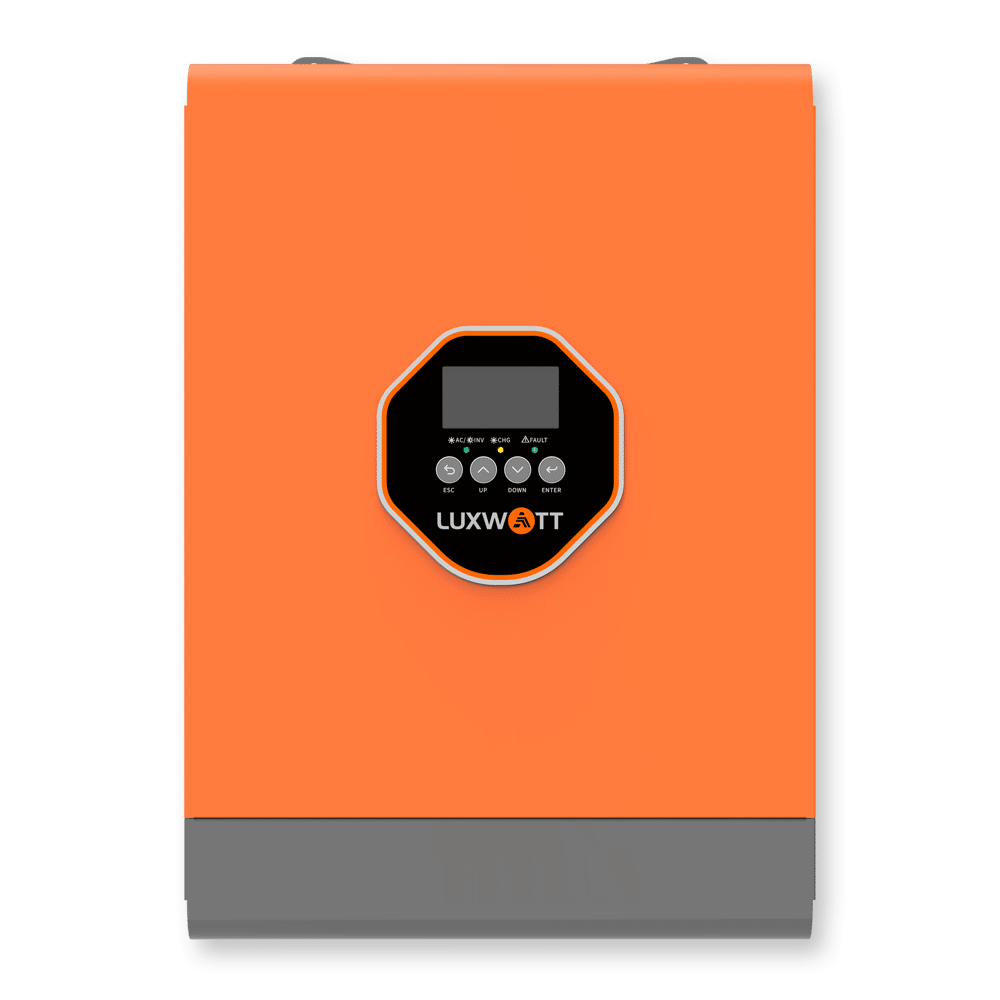

1.2 kw Single Phase Hybrid inverter

1.2 kw Single Phase Hybrid inverter

1. Pure sine wave output inverter;
2. Independently develop PCB boards and cooling systems with stable quality;
3. Flexible installation and high charging efficiency;
4. Intelligent battery charging design to optimize battery life;
5. Parallel expansion is possible, with 6 units working at the same time;
6. Optional wifi function.

• Description


  Feature	Specification
  Rated Power	1200W / 1.2kVA
  Peak Power	2400W (5 seconds)
  Output Waveform	Pure Sine Wave
  AC Output Voltage	230VAC ± 5%
  AC Output Frequency	50Hz / 60Hz (Auto sensing)
  Efficiency (Peak)	>90%
  Battery Voltage	12VDC
  Max PV Array Power	1500W
  MPPT Voltage Range	17VDC ~ 80VDC
  Max PV Open Circuit Voltage	100VDC
  Max Solar Charge Current	50A
  Max AC Charge Current	20A
  Combined Charge Current	70A
  Dimensions (D x W x H)	350 x 270 x 100 mm
  Net Weight	6.5 kg
  Protection	Overload, Short Circuit, Over-temperature
  Communication	USB, RS232 (Optional Wi-Fi/GPRS)
  Operating Temperature	0°C - 55°C
